HDMI 1.3 over Single CAT5 Direct Plug-in Extender

The HDMI-EXT-1101C HDMI Extender over Single Cat.X with Direct Plug-in Receiver boosts up your video/audio transmission distance up to 25m (80ft) in HDTV 1080i format. With only one cost effective LAN cable, users can directly plug the receiver in to HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI/DVI enabled TV sets or LCD PC monitors. This cost effective flexibility makes HDCP compliant DVD players or PS3 transmit high quality video and audio with a greater distance at the minimal cost, when integrating several components apart.

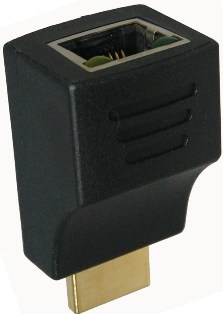

The HDMI-EXT-1101C includes two units: transmitting (HDMI-EXT-1101C -TX) and receiving (HDMI-EXT-1101C -RX) units. The transmitting unit is used to capture the input HDMI/DVI signals and carry the signals through one RJ45 connector into one cost effective Cat-5/5e/6 cable. The transmission distance between the sending and receiving units can be up to 25m (80ft) under HD (720p/1080i) or 15m (50ft) under Full HD (1080p). With direct plug-in to the HDTV, users do not need to have to find a power outlet for the traditional HDMI over CAT5 receiver and can save an HDMI cable with ease of use.

How it works

Features

- State-of-the-art Silicon Image (founder of HDMI) chipset embedded for utmost compatibility and reliability
- HDMI 1.3c compliant
- HDCP 1.1 compliant
- Extends the transmission length up to 25m (80ft) from the HDMI
- sources under HD resolution (1080i or 720p)
- Extends the transmission length up to 15m (50ft) from the HDMI sources under Full HD resolution (1080p)
- Wall mounting housing design for easy and robust installation
- Pure unaltered uncompressed 7.1ch digital HDMI over UTP cable transmission
- Perfectly integrated with other HDMI over CAT5 series products

Specifications

- Role of usage: Transmitter [TX]
- HDMI compliance: HDMI 1.3c
- HDCP compliance: Yes
- Video bandwidth: Single-link 225MHz [2.25Gbps]
- Video support: 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color
- HDMI over UTP: Full HD (1080p)-15m (50ft) [CAT5e] / 18m (65ft) [CAT6]; HD (720p/1080i)-25m (80ft) [CAT5e] / 30m (100ft) [CAT6]
- Audio support: Surround sound [up to 7.1ch) or stereo digital audio
- Equalization: No
- Input TMDS signal: 1.2 Volts [peak-to-peak]
- Input DDC signal: 5 Volts [peak-to-peak, TTL]
- ESD protection: [1] Human body model - +-19kV [air-gap discharge] & +-12kV [contact discharge]; [2] Core chipset - +-8kV
- PCB stack-up: 4-layer board [impedance control - differential 100Ω; single 50Ω]
- Input: 1x HDMI
- Output: 1x RJ-45
- HDMI connector: Type A [19-pin female]

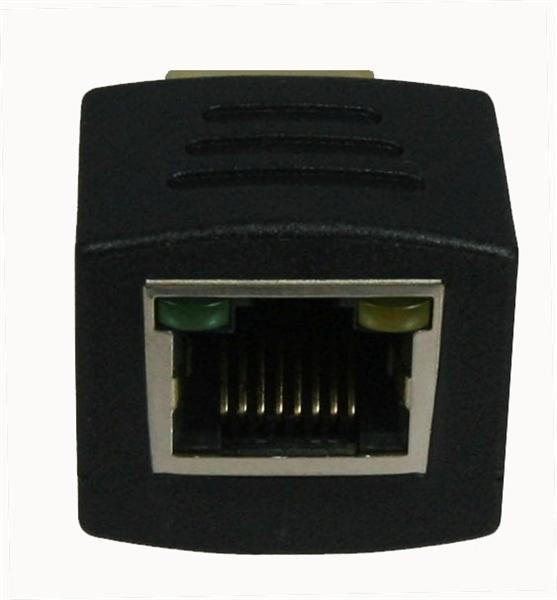

- RJ-45 connector: WE/SS 8P8C with 2 LED indicators
- Rotary switch: Mode

Packages Includes

- EXT-0101C[TX]
- EXT-1111[RX]
- DC 5V2A wall wart
- User Manual
